Yamaha EAD10 Electronic Acoustic Drum Module Percussion Accessories

MIC YOUR DRUMS IN SECONDS

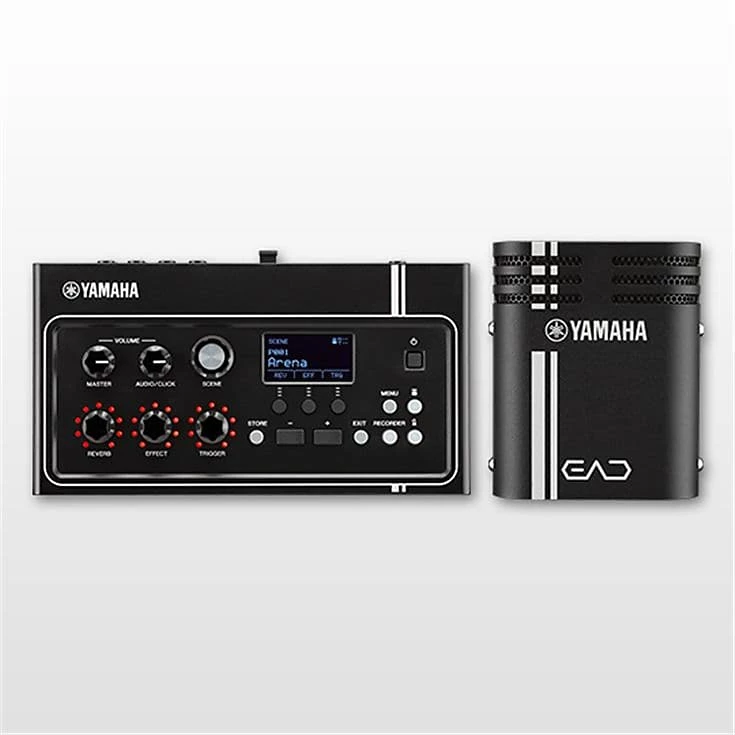

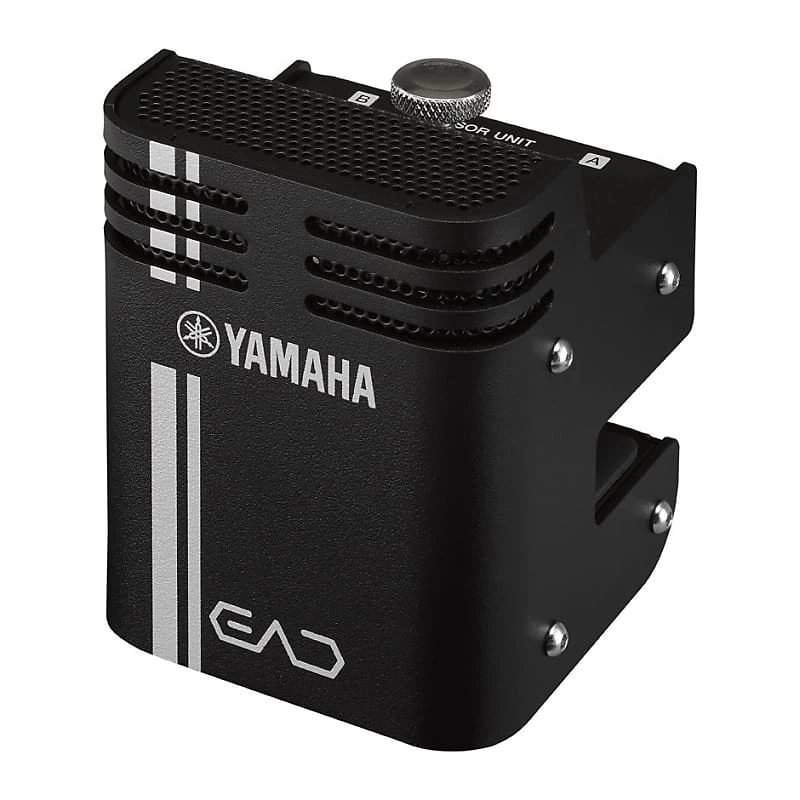

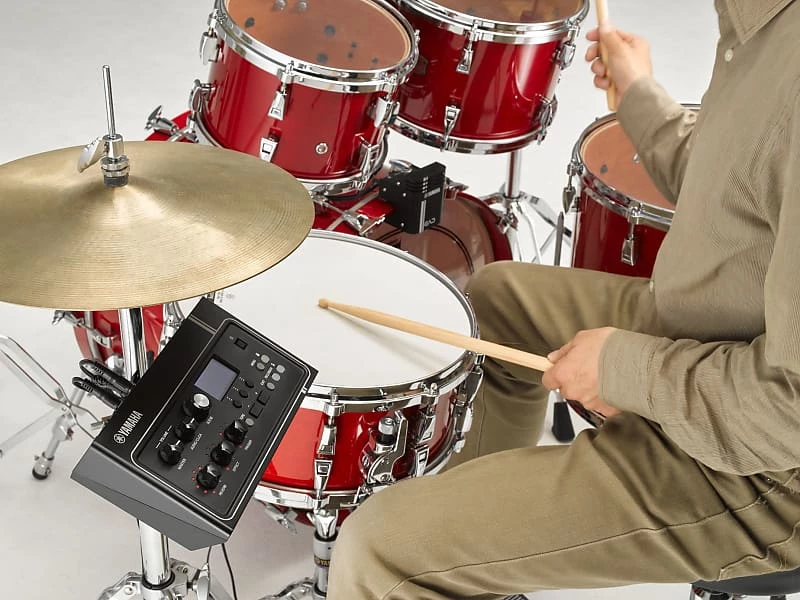

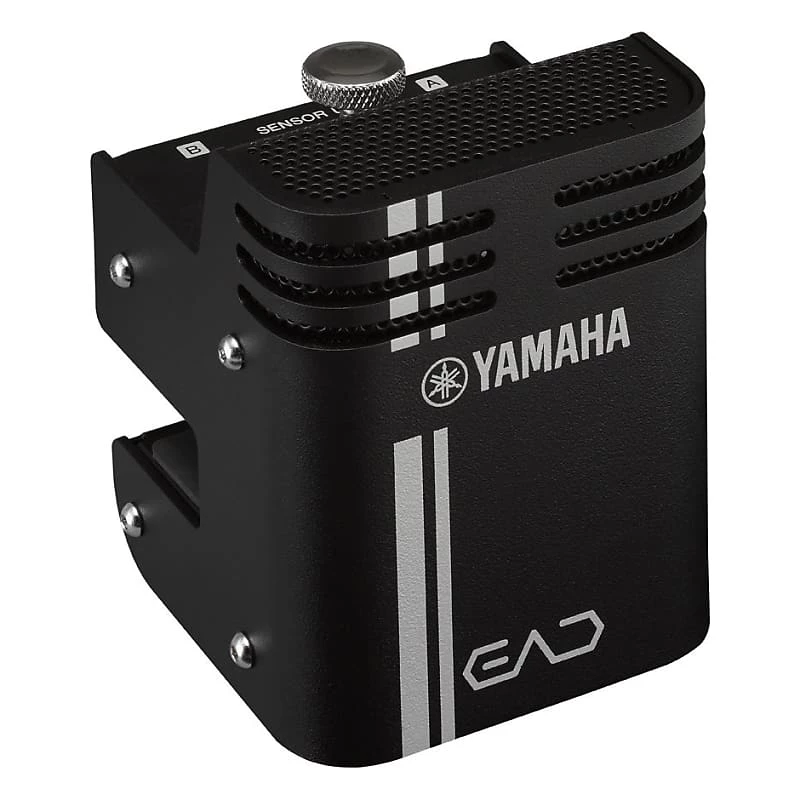

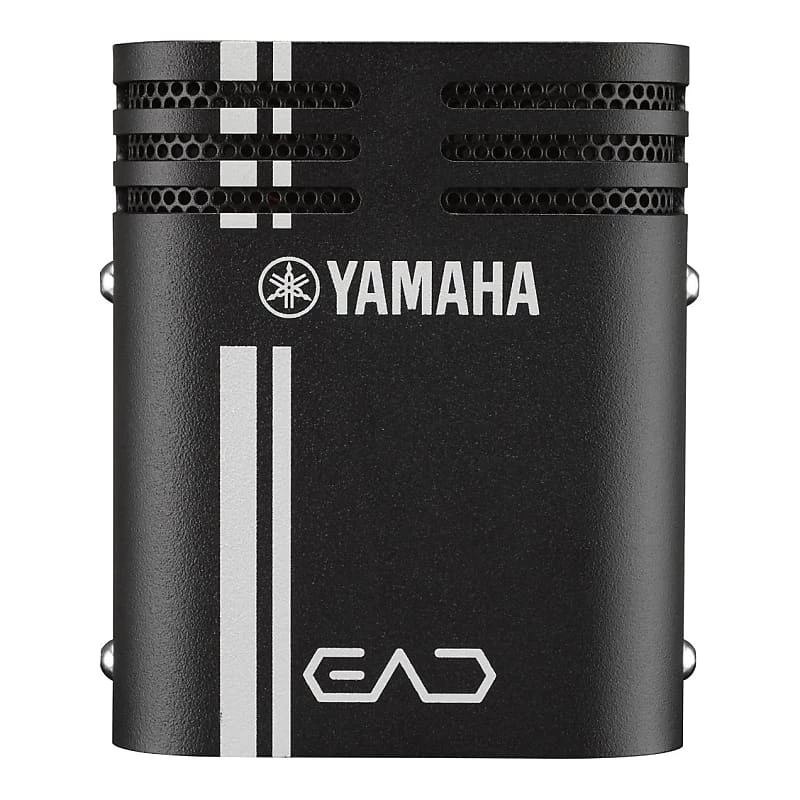

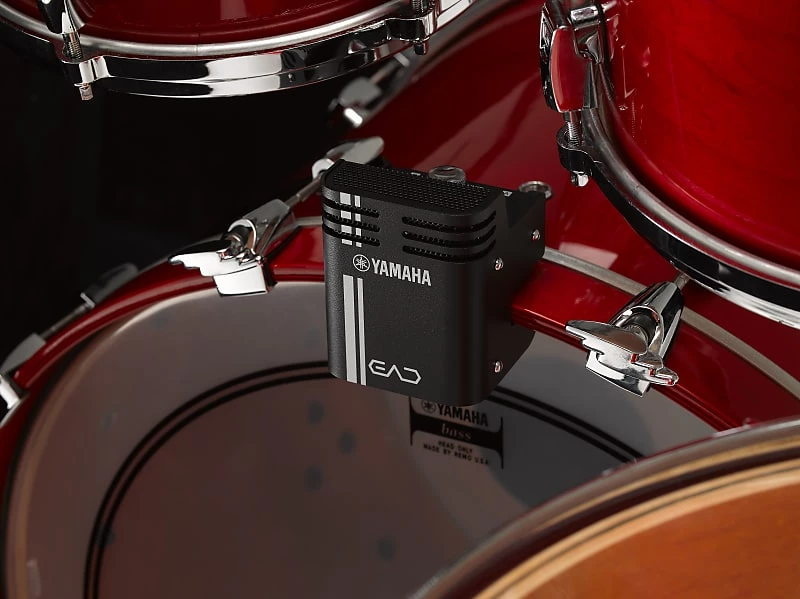

Attach the EAD10 sensor to any acoustic drum set and you will have a high-quality, stereo image of your entire kit in seconds. You can instantly hear studio-quality sound from your headphones or PA system. Also, you can record the sound to a module, smart device, USB flash drive or computer.

MAKE YOUR DRUMS DO MORE

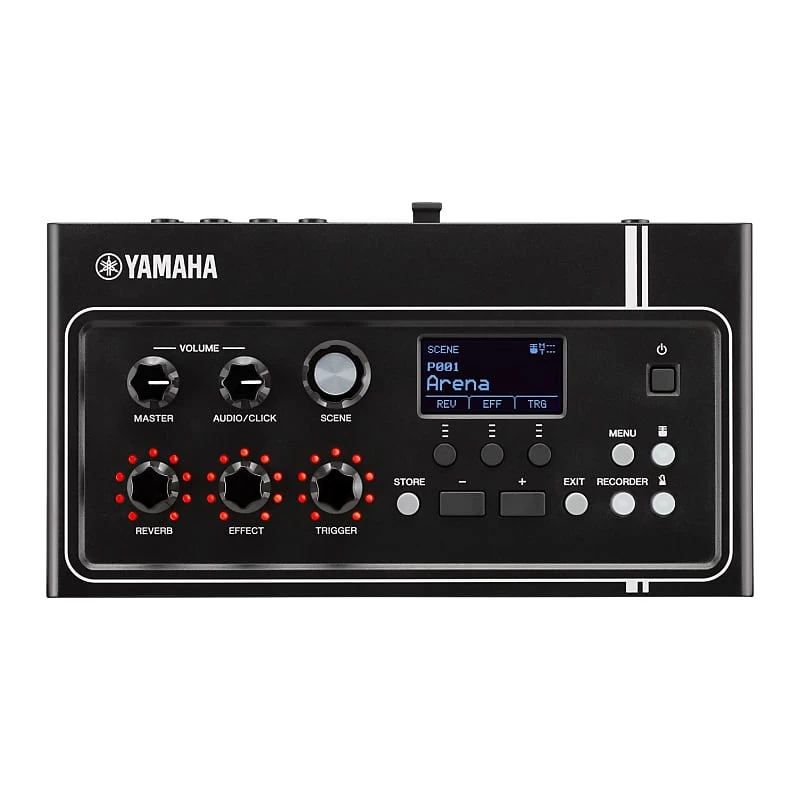

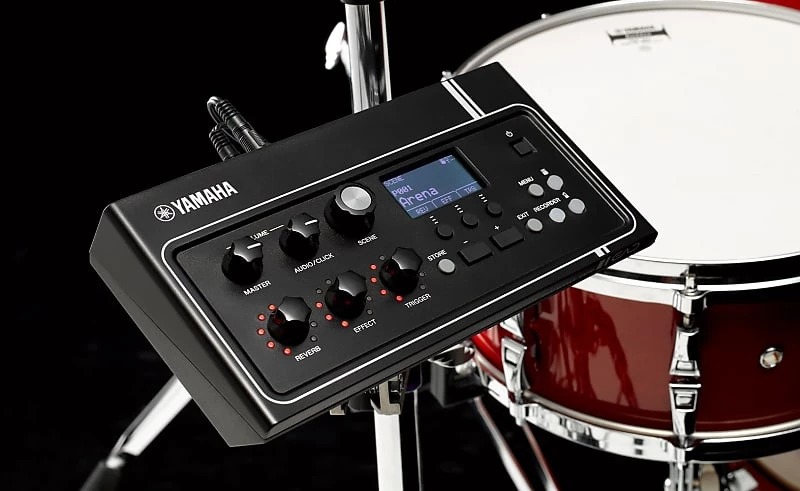

The module is intuitive to operate, and it can instantly transform your acoustic drum sound.
You can also easily make it a hybrid drum kit by connecting additional triggers or pads.

PLAY WITH THE WORLD! SHARE WITH THE WORLD!
The EAD10 allows you to play along with your favorite artists from your music library. The free iOS/Android app “Rec’n’Share” allows you to create stunning audio and video and easily share it directly from your mobile device.

EAD SCENES
Whether you are practicing, recording, performing or sharing, the EAD10 makes playing your acoustic drums inspiring and fun.

SPECIFICATIONS

Tone Generator
Scenes: Preset: 50, User: 200
Reverb: 11
Effects: Mic: 21, Trigger: 10
Trigger Sounds: Tone generator: AWM2, Maximum Polyphony: 64, Voices: 757

Recorder
Recording Time: Internal Memory: Approx. 1 min 30 sec
USB flash drive: Approx. 90 min/file
Recording Format: WAV (44.1 kHz, 16 bit, stereo)

Audio Files
Import limit: Up to 100
Playback Sample Format: 44.1 kHz
Wave Memory: 32MB
Maximum Loadable Sample Size: 1 mono sample: 1.75MB, 1 stereo sample: 3.5MB
Sample Format: WAV (16 bit)

Click-Track
Tempo: 30-300BPM, tap tempo function
Time Signatures: 1/4 to 16/4, 1/8 to 16/8, 1/16 to 16/6
Subdivisions: Accents, quarter notes, eighth notes, sixteenth notes, and eighth-note triplets

Functions
Trigger sensitivity adjustment
USB audio/MIDI
Headphone EQ
Metronome
Auto power off

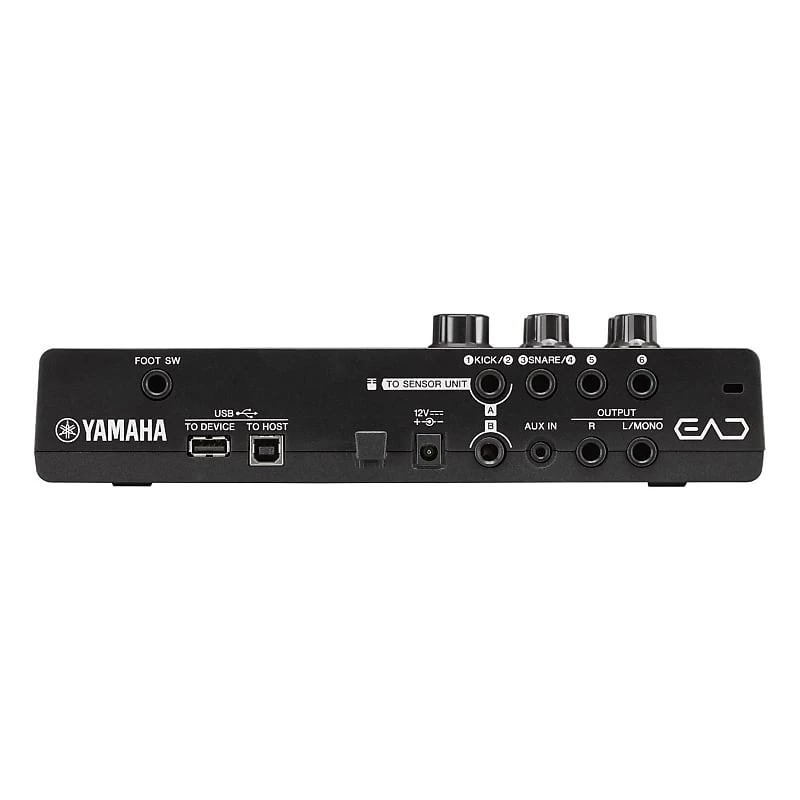

Connectors
DC IN (12V)

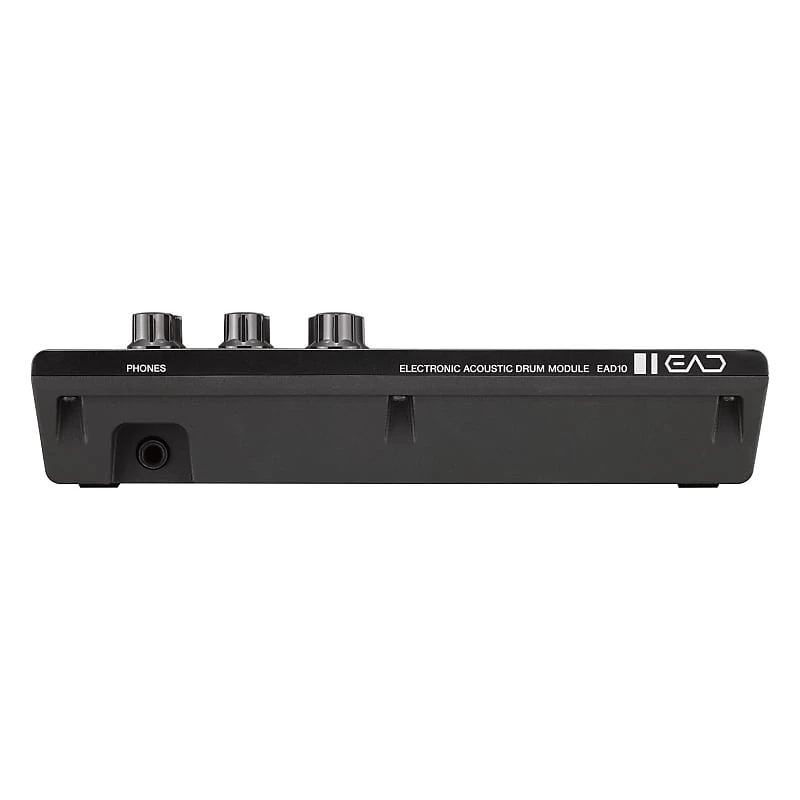

PHONES (standard stereo phone)
AUX IN (stereo mini)
OUTPUT L/MONO, R (standard mono phone)
USB TO DEVICE, USB TO HOST

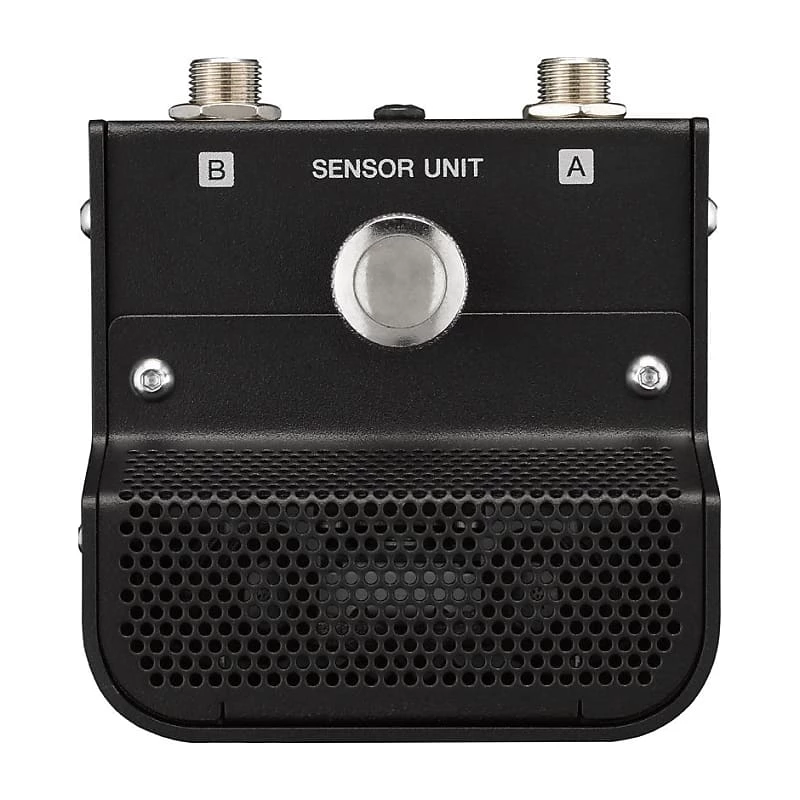

Sensor Unit: for trigger sensor: A (standard stereo phone), for mic sensor: B (standard stereo phone)
Trigger Input: Stereo (L: trigger, R: trigger): 1 KICK/2 (also serves as A), 3 SNARE/4 (standard stereo phone)
Three-zone (L: trigger, R: rim switch): 5, 6 (standard stereo phone)
Foot Pedal: Foot SW (standard stereo phone)
Sensor Outputs: for trigger sensor: A (standard phone), for mic sensor: B (standard stereo phone)

Sensor Types
Microphone: High SPL mic x 2
Trigger: Exclusive for bass drum x 1

Included Accessories
PA-150 (or an equivalent recommended by Yamaha)
Module Holder
Module Holder Wing Bolts (x2)
Connector Cables (1 pair)
Cable Bands (x3)
Adhesive Cushions (x2)
