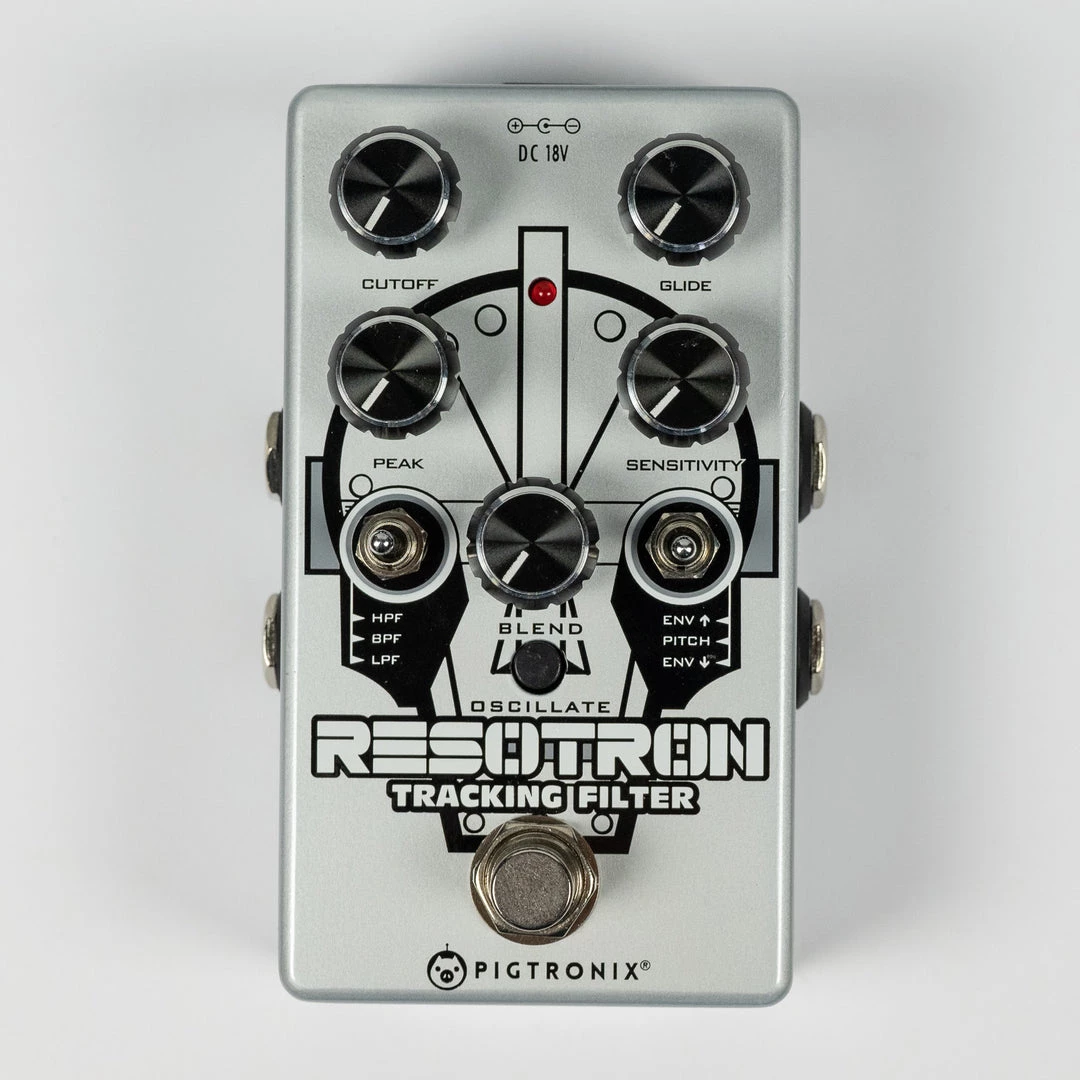

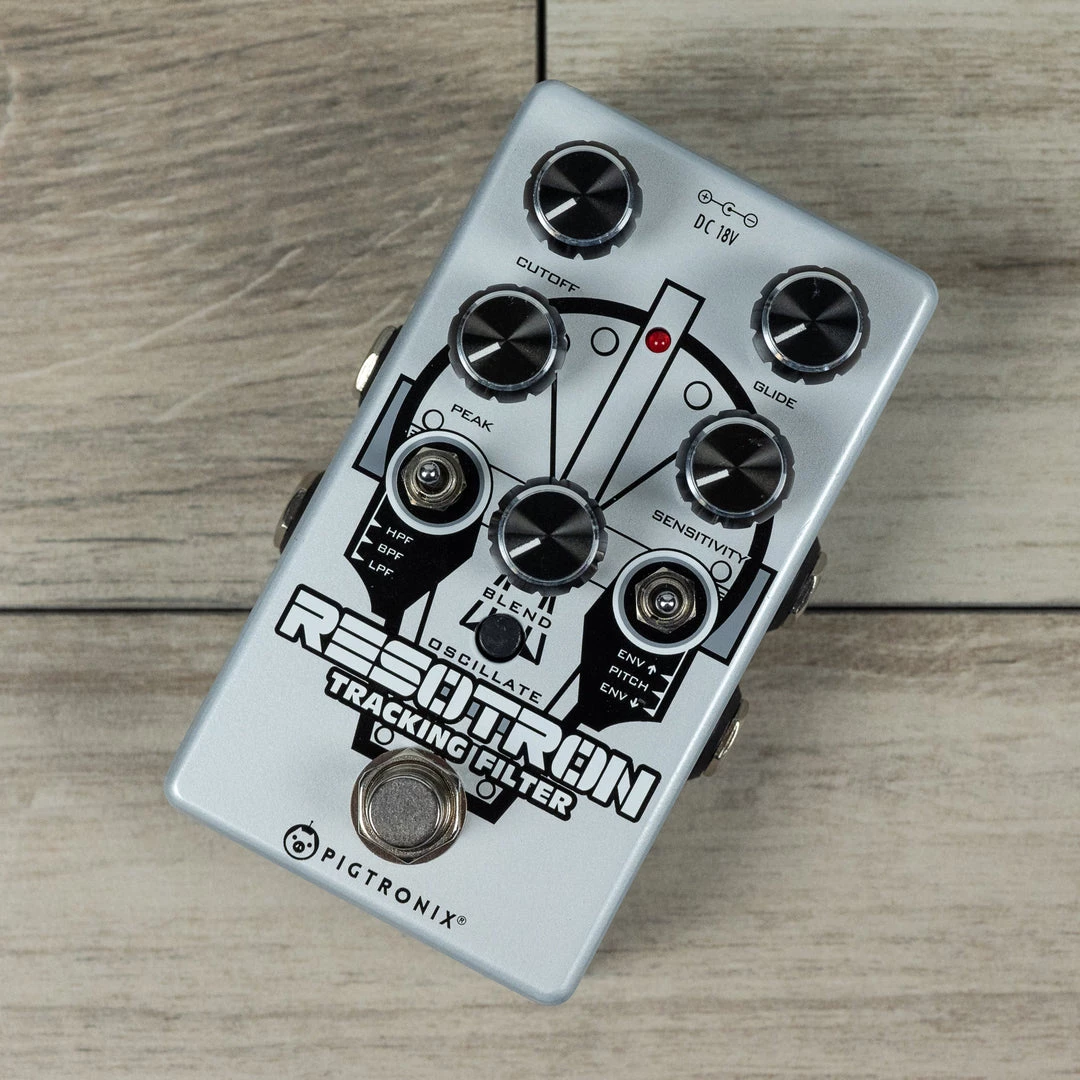

Pigtronix Resotron Analog Tracking Filter

RESOTRON
Pigtronix Resotron is an analog filter that brings the sound of 70’s keyboard synthesizers to the world of envelope pedals for guitar, bass and beyond. The filter at the heart of the Resotron is based on the SSM2040 chip found in the legendary Prophet 5 and Octave CAT synthesizers. This 24db/octave, state-variable filter provides the full gamut of familiar envelope filter sounds with UP and DOWN sweeping modes, and a sensitivity control to dial in the response of the effect based on how hard you play.

In addition to these vintage-correct filter tones, the Resotron pushes the envelope pedal concept to a whole new level by using an analog pitch-tracking system to move the cutoff frequency of the filter up and down. The pitch-following filter effect found in the Resotron moves around based on the notes you play instead of how hard you play. The attack time and rate of filter motion can be adjusted—using the GLIDE knob—to dial in how long it takes for the cutoff to travel between pitches.

“The pitch-following effect found in the Resotron is analogous to the “key-follow” function found on the original Minimoog and many other classic analog keyboards,” says Pigtronix president David Koltai. “Using our all-analog pitch-tracking circuit to control cutoff frequency, the Resotron delivers mind-blowing filter motion for guitar players. I’ve dreamt of making this pedal for years, and it’s finally here.”

The Resotron has the ability to operate in Low Pass, Band Pass or High Pass modes. Each of these filter voices has a distinctive character that can be manipulated by adjusting the PEAK knob, progressively feeding the filter back upon itself to increase the resonance (or “Q”) of the filter, right up to the point of self-oscillation. A push-button OSCILLATE function allows you to go even further – turning the Resotron into an analog synthesizer pedal that follows both the pitch and dynamics of your playing. The synthesizer sounds created by the Resotron can be radically altered by switching between the LPF, BPF and HPF modes. This allows users to access waveforms that range from subtle voice emulations to bombastic, aggressive lead sounds, as well as ultra-smooth sub bass tones.

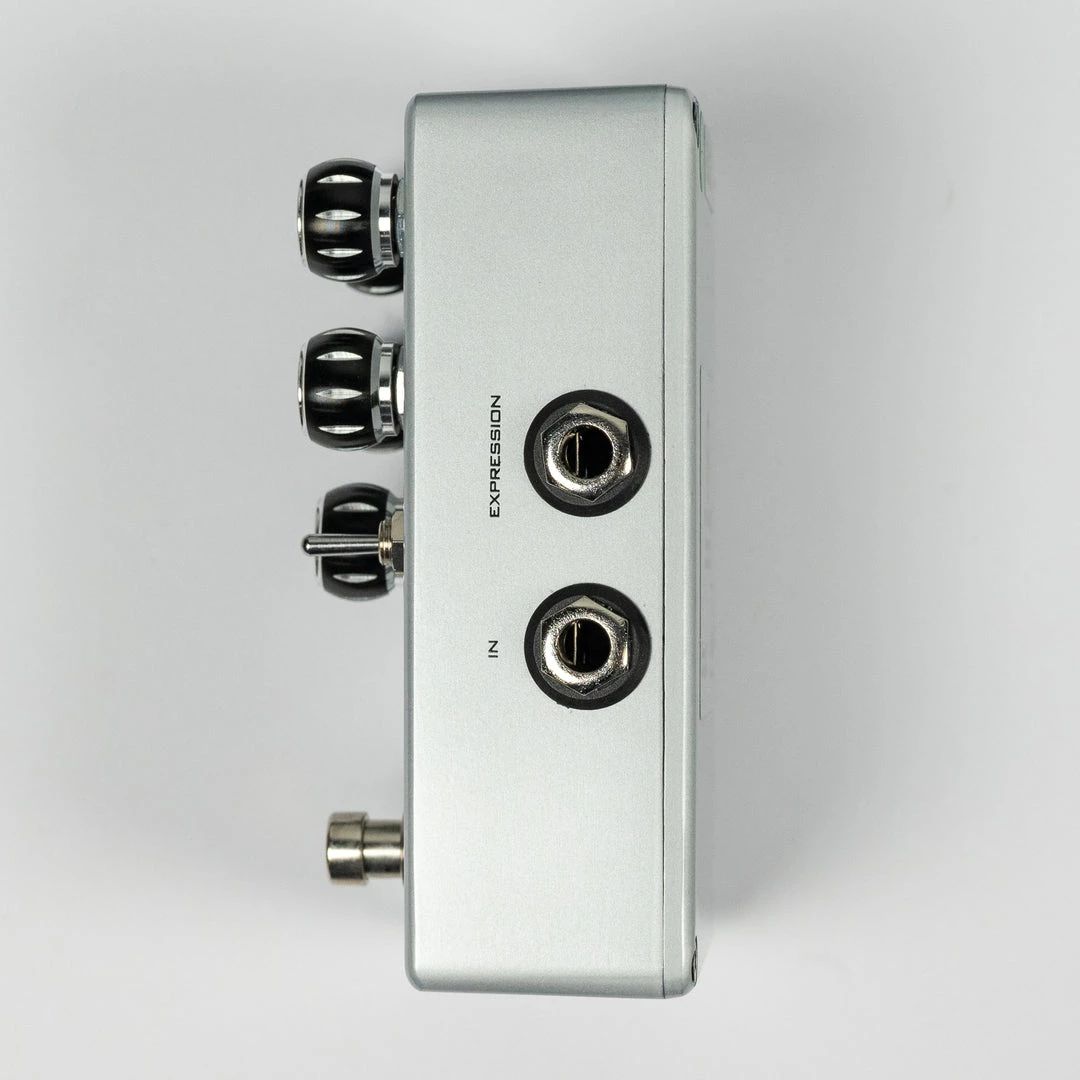

Before the pedal’s input signal hits the Resotron’s filter, it passes through an optical compression stage derived from the Pigtronix Philosopher’s Tone pedal. The increased volume and punch from this compressor can then be mixed into the audio signal using the BLEND control – without affecting the SENSITIVITY of the envelope. Resotron accepts active CV and passive TRS expression pedal inputs for foot-controlled filter sweeps and outboard modulation, which is mixed in parallel with the on-board pitch-following and amplitude tracking systems.

FEATURES

• 24db/oct Filter based on the SSM2040 chip
• Low Pass, Band Pass & High Pass Filter options
• Velocity controlled UP & DOWN envelope modes
• Pitch Following envelope function with variable GLIDE
• BLEND control mixes in Philospher’s Tone compression
• Expression pedal/0-5V CB input modulates CUTOFF
• OSCILLATE mode for monophonic synth sounds

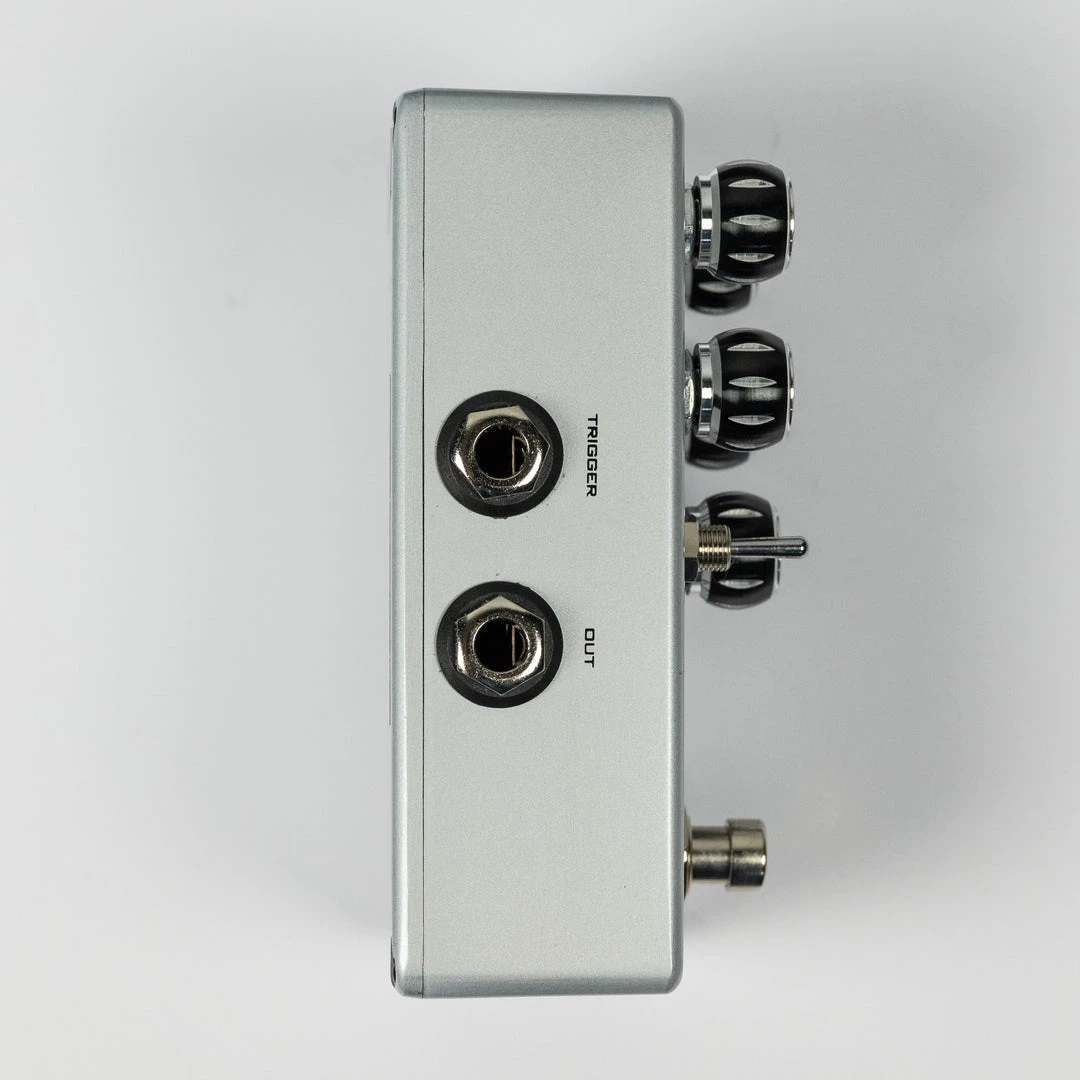

• Sidechain TRIGGER input for external audio
• Hardwired True Bypass Switching
• 18VDC Power Supply Included
• 100% Analog Design
• Circuit Design by Nick Cote
• Sound Design by David Koltai
• Weight: 2lbs
• Dimensions: 9″ x 6″ x 5″
