Effects Pedals EarthQuaker Devices Park Fuzz Sound Vintage Germanium Fuzz Tone

Park Amplifiers and EarthQuaker Devices have teamed up to bring you a faithful recreation of the original Park Fuzz Sound! While it retains the original sounds, there are several modern upgrades to improve performance, reduce extraneous background noise and add versatility:

• Metal film resistors and caps for quieter performance

• NOS matched germanium transistors for consistent, reliable tones

• Wider fuzz range, more than twice the original

• Smaller footprint, true bypass switching with LED indication and power supply compatible

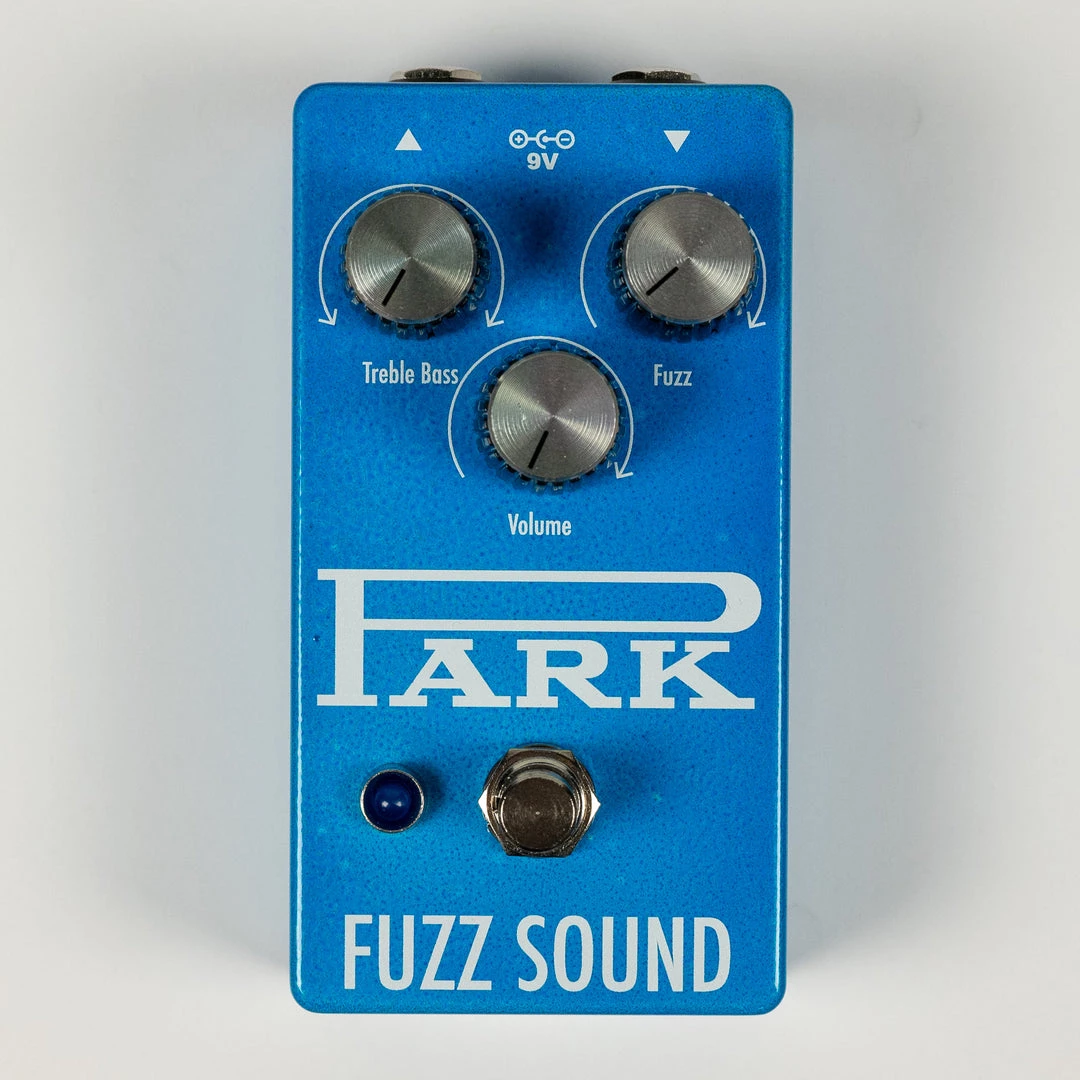

CONTROLS

• Volume: This is the level control, louder to the right, quieter to the left.

• Treble/Bass: This is the tone control, thicker tones to the right, brighter to the left.

• Fuzz: This is the gain control, more fuzz to the right, less to the left.


TECH SPECS

• Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs

• Current Draw: 3 mA

• Input Impedance: 100 kΩ

• Output Impedance: <1 kΩ


SWITCHING
This device is true bypass and uses electronic relay-based switching. Audio will not pass without power.

POWER
This device can be powered by a standard 9 volt DC power supply intended for musical instruments with a negative center 2.1mm barrel. Even though this pedal is a germanium fuzz, it will play nice on a daisy chain due to its internal voltage regulation. DO NOT RUN AT HIGHER VOLTAGES!

Small flecks seen/felt in the finish are a part of the finish design and are not finish flaws.
