Effects Pedals Boss TR-2 Tremolo

CLASSIC TREMOLO SOUNDS!

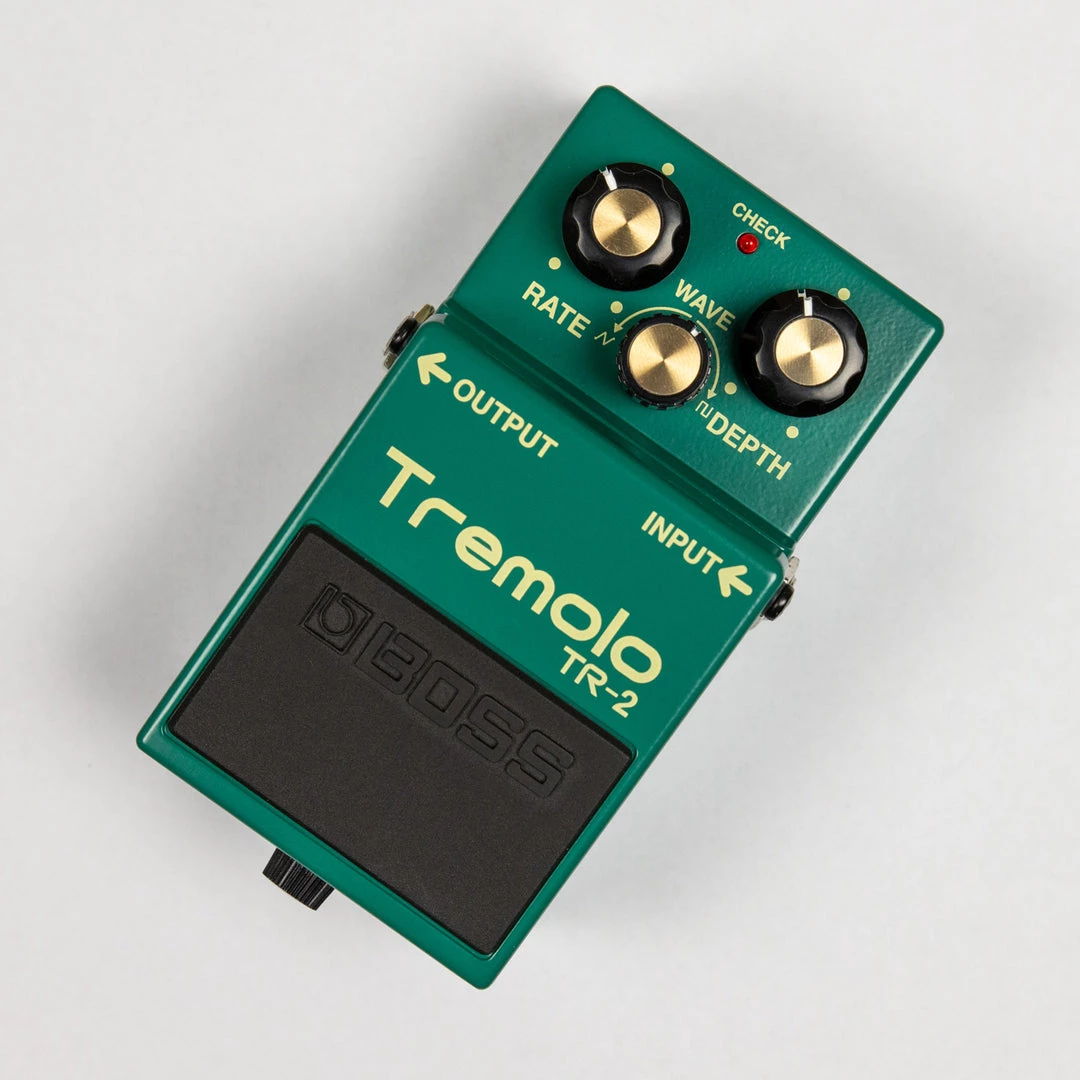

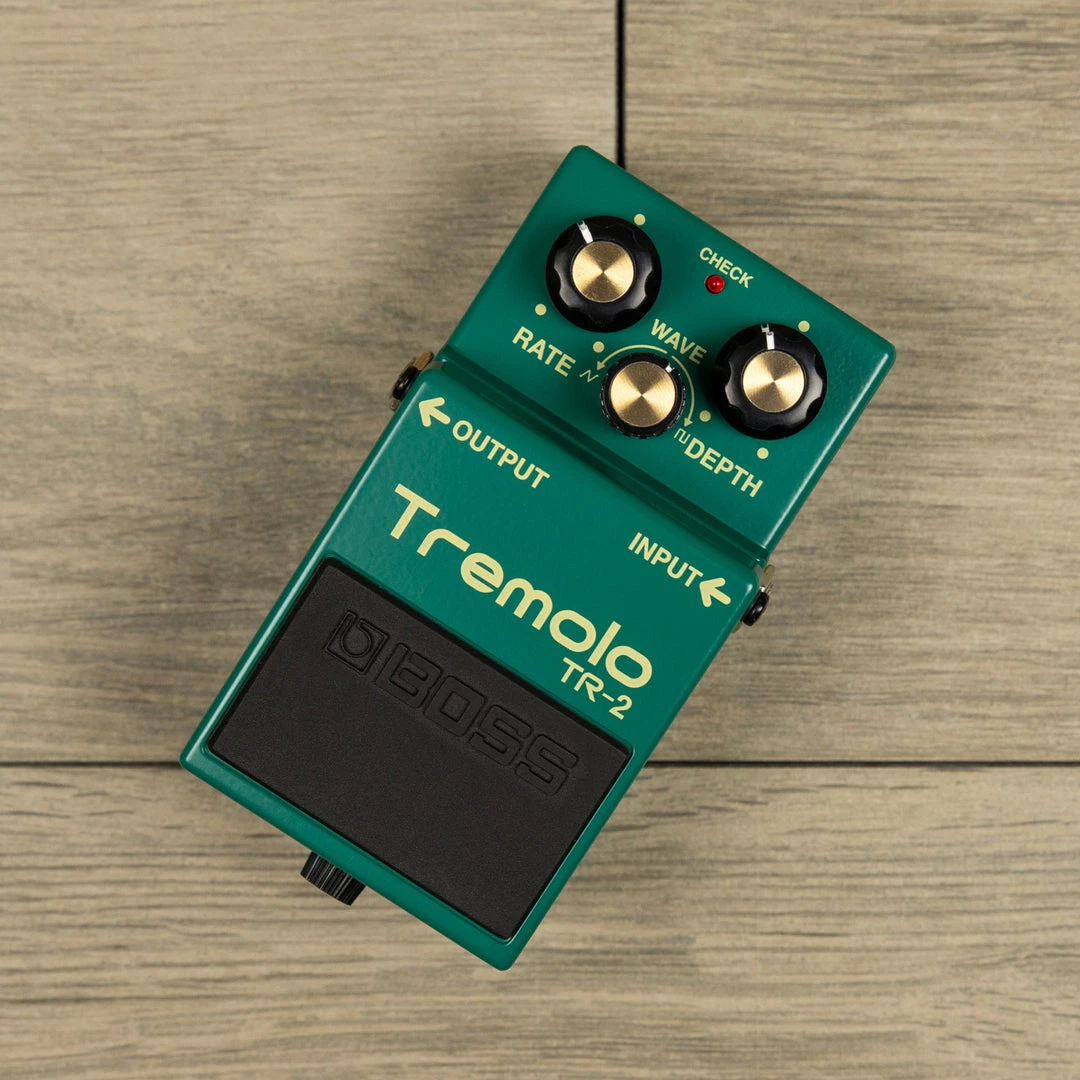

The BOSS TR-2 Tremolo is designed to provide guitarists with classic tremolo effects in an easy-to-use compact pedal. Dedicated “Wave,” “Rate,” and “Depth” knobs provide a multitude of effect possibilities.

• Provides guitarists with high-quality vintage tremolo effects in an easy-to-use compact pedal
• Dedicated “Wave,” “Rate” and “Depth” knobs allow for precise effect tailoring
• “Rate” control allows for higher speed adjustment than classic PN-2
• “Wave” control alters LFO waveform from triangle to square
• “Depth” control determines the strength of the effect
• BOSS five-year warranty

SPECIFICATIONS

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass
• Controls:
  • DEPTH knob
  • RATE knob
  • WAVE knob
  • Pedal switch
• Indicator: CHECK indicator (Used for indication of check battery)
• Connectors:
  • INPUT jack: 1/4-inch phone type
  • OUTPUT jack: 1/4-inch phone type
  • DC IN jack
• Power Supply:
  • Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
  • AC adaptor (PSA series: sold separately)
• Current Draw: 20 mA
• Accessories:
  • Owner’s manual
  • Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
  • Carbon-zinc battery (9 V, 6F22)
• Options (sold separately): AC adaptor: PSA series

SIZE AND WEIGHT

• Width: 73 mm(2-7/8 inches)
• Depth: 129 mm(5-1/8 inches)
• Height: 59 mm(2-3/8 inches)
• Weight (including battery): 400 g(15 oz)
