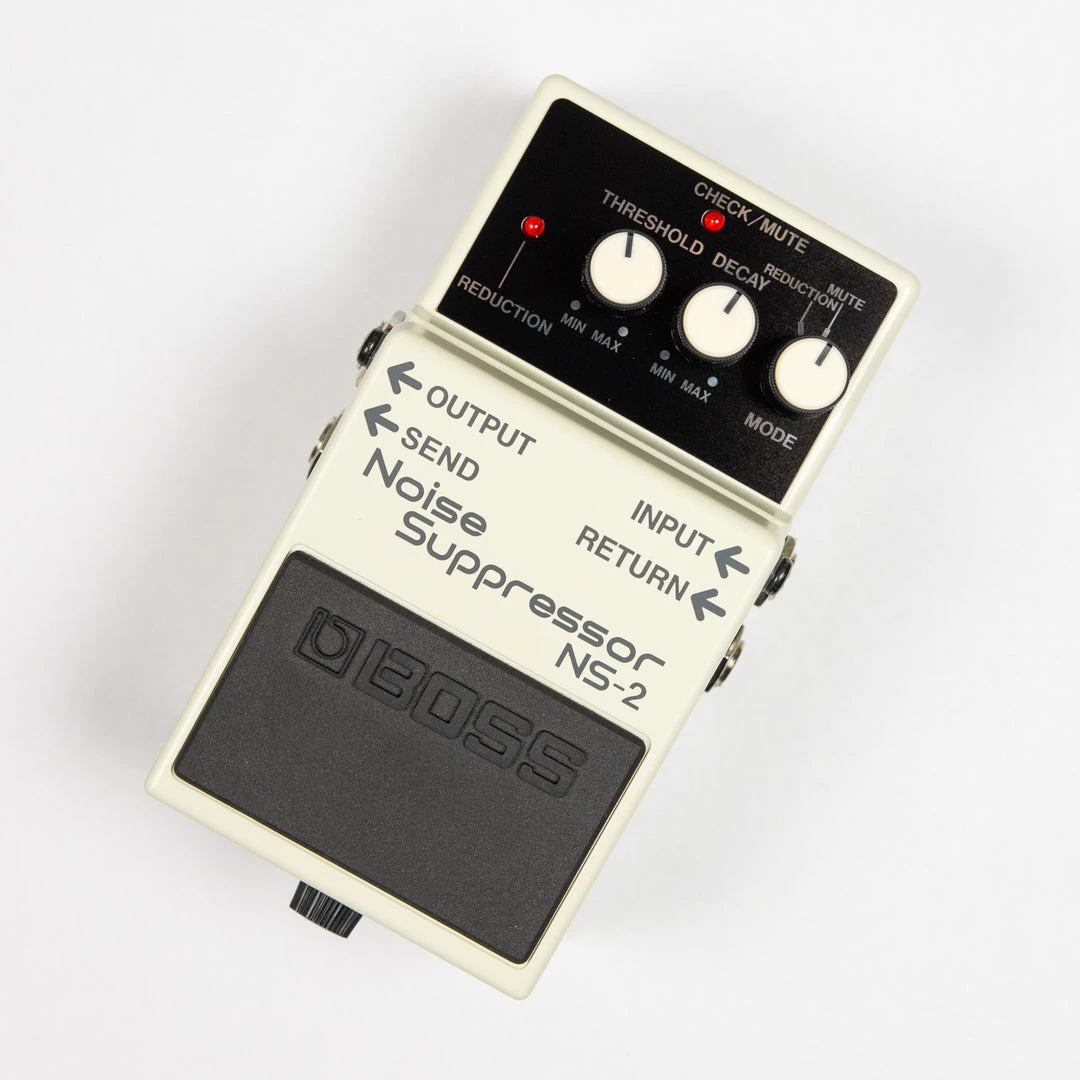

Effects Pedals Boss NS-2 Noise Suppressor

A “MUST-HAVE” PEDAL!
The NS-2 Noise Suppressor eliminates unwanted noise and hum without altering an instrument’s natural tone. It’s the perfect pedal to quiet down any pedalboard or effects setup.

• Compact noise suppression pedal for eliminating noise and hum in guitar and bass effects and amplifier setups
• Unique noise detection circuit preserves the natural attack and envelope of an instrument’s sound
• Threshold and Decay knobs allow for shaping the elimination/suppression as desired
• BOSS 5-year warranty

SPECIFICATIONS

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass
• Controls:
  • MODE selector switch
  • DECAY knob
  • THRESHOLD knob
  • Pedal switch
• Indicator:
  • CHECK/MUTE indicator (Used for indication of check battery)
  • REDUCTION indicator
• Connectors:
  • INPUT jack: 1/4-inch phone type
  • OUTPUT jack: 1/4-inch phone type
  • SEND jack: 1/4-inch phone type
  • RETURN jack: 1/4-inch phone type
  • DC IN jack
  • 9V DC OUT jack
• Power Supply:
  • Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
  • AC adaptor (PSA series: sold separately)
• Current Draw: 20 mA
• Expected battery life under continuous use:
  • Carbon: Approx. 5 hours
  • *These figures will vary depending on the actual conditions of use.
• Accessories:
  • Owner’s manual
  • Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
  • Carbon-zinc battery (9 V, 6F22)
• Options (sold separately):
  • AC adaptor: PSA series
  • DC-DC Plug: PCS-25
  • Parallel DC Cord: PCS-20A

SIZE AND WEIGHT

• Width: 73 mm(2-7/8 inches)
• Depth: 129 mm(5-1/8 inches)
• Height: 59 mm(2-3/8 inches)
• Weight including battery: 400 g(15 oz)
