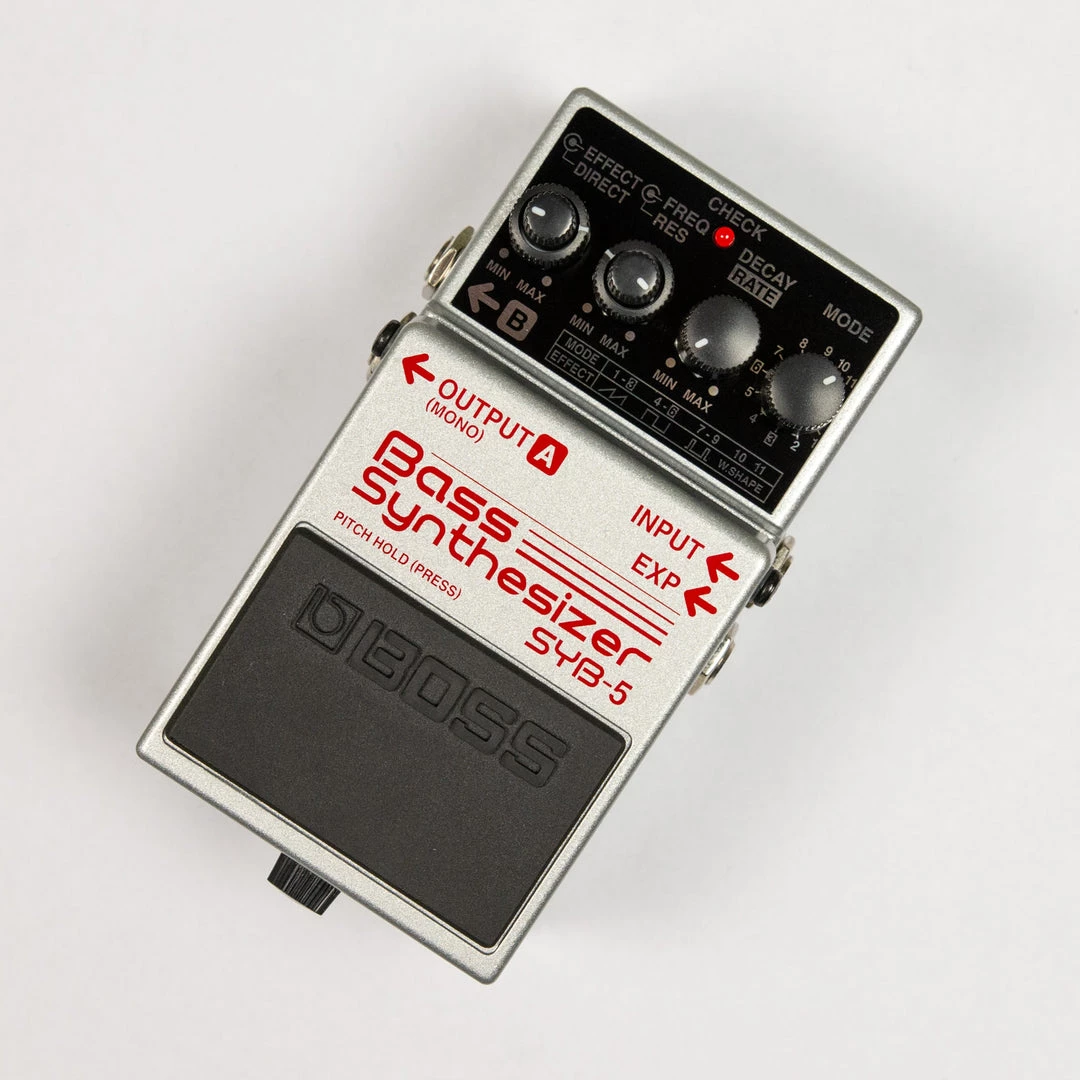

Boss SYB-5 Bass Synthesizer

A FATTER, FUNKIER PEDAL FOR BASSISTS
The BOSS SYB-3 was the world’s first bass synthesizer to be packed into a compact pedal, and it found favor with experimentalists and tone aficionados alike. Today, the next-generation bass-synth pedal has arrived: the SYB-5. Utilizing the latest in DSP technology, the SYB-5 faithfully reproduces the classic sound characteristics of analog synthesizers with enhanced punch and power.

• 11 DSP variations of saw, square, and pulse synth waves
• Enhanced Wave Shape mode provides sharper sounds
• Hold notes with the onboard pedal and jam over the top
• Control filter cutoff and LFO rate via EV-5 Expression Pedal (sold separately)
• BOSS five-year warranty

Enhanced Sound With the Latest DSP
All of the 11 internal synth sounds have been markedly refined and enhanced to produce a fatter, more cutting sound than ever. The sounds are built on variations of three oscillator Waves (Saw, Square, Pulse) and filters that modulate according to the envelope and LFO changes you apply. You won’t believe how much synth-bass beef can come from such a small pedal.

Enhanced Playability Via External Control
An external pedal input jack has been added to the SYB-5 for connecting an EV-5 Expression Pedal (sold separately), which allows you to control filter cutoff and LFO rate in real time with your foot. In Modes 1−9 you can use the SYB-5’s onboard pedal to hold a note while playing a bass phrase over it. Time for a bass solo? You bet!

SPECIFICATIONS

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass
• Controls:
  • MODE knob
  • DECAY/RATE knob
  • FREQ/RES(Frequency/Resonance) knob
  • EFFECT/DIRECT(Effect Level/Direct Level) knob
  • Pedal switch
• Indicator: CHECK indicator (Used for indication of check battery)
• Connectors:
  • INPUT jack: 1/4-inch phone type
  • OUTPUT A(MONO)/OUTPUT B jack: 1/4-inch phone type
  • EXP jack: 1/4-inch stereo phone type
  • DC IN jack
• Power Supply:
  • Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
  • AC adaptor (PSA series: sold separately)
• Current Draw: 50 mA
• Expected battery life under continuous use:
  • Alkaline: Approx. 6 hours
  • Carbon: Approx. 2 hours
  • *These figures will vary depending on the actual conditions of use.
• Accessories:
  • Owner’s manual
  • Mode Label
  • Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
  • Alkaline battery (9 V, 6LR61)
• Options (sold separately): AC adaptor: PSA series
  • Expression pedal: Roland EV-5/BOSS EV-30, FV-500L, FV-500H

SIZE AND WEIGHT

• Width: 73 mm(2-7/8 inches)
• Depth: 129 mm(5-1/8 inches)
• Height: 59 mm(2-3/8 inches)
• Weight (including battery): 440 g(1 lb)
