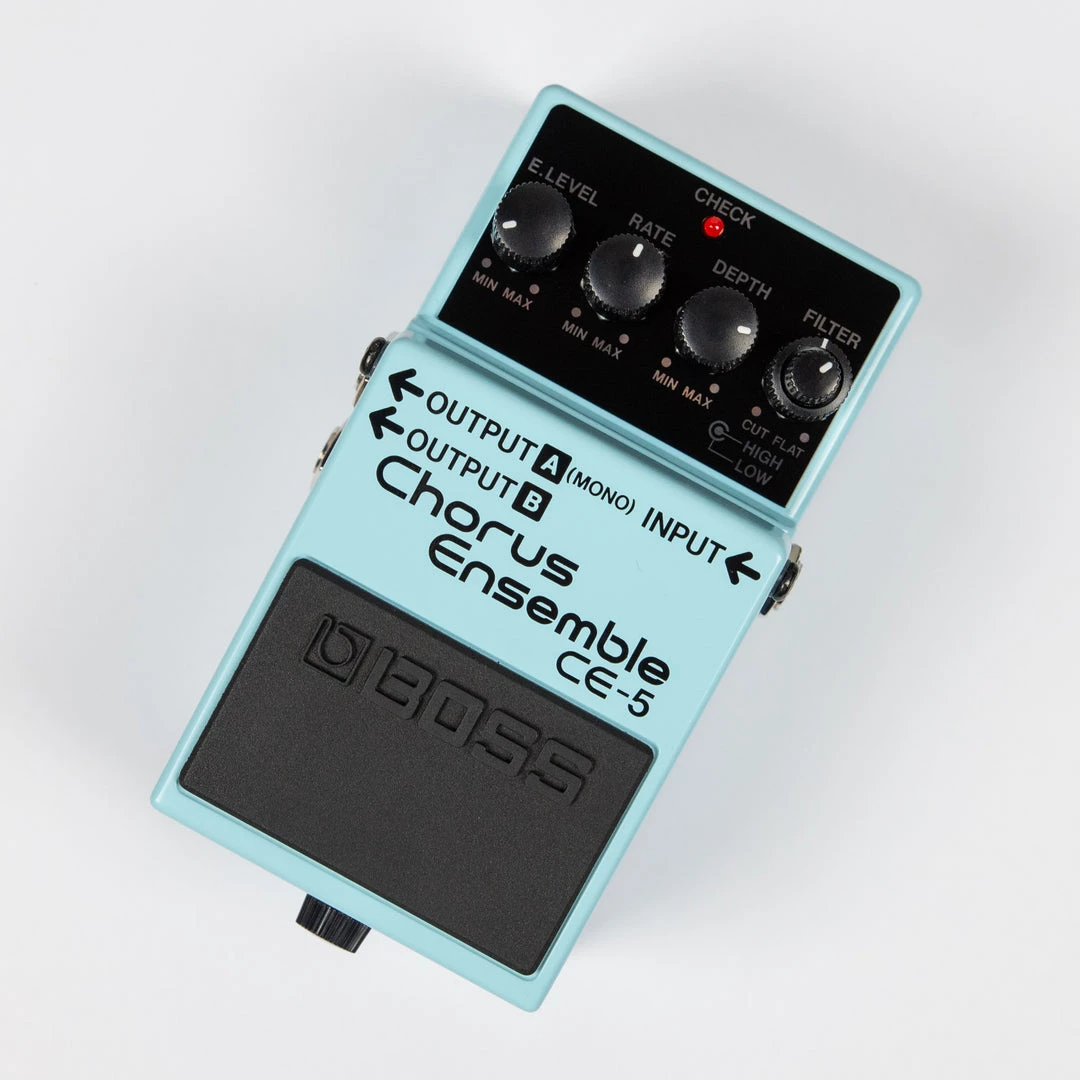

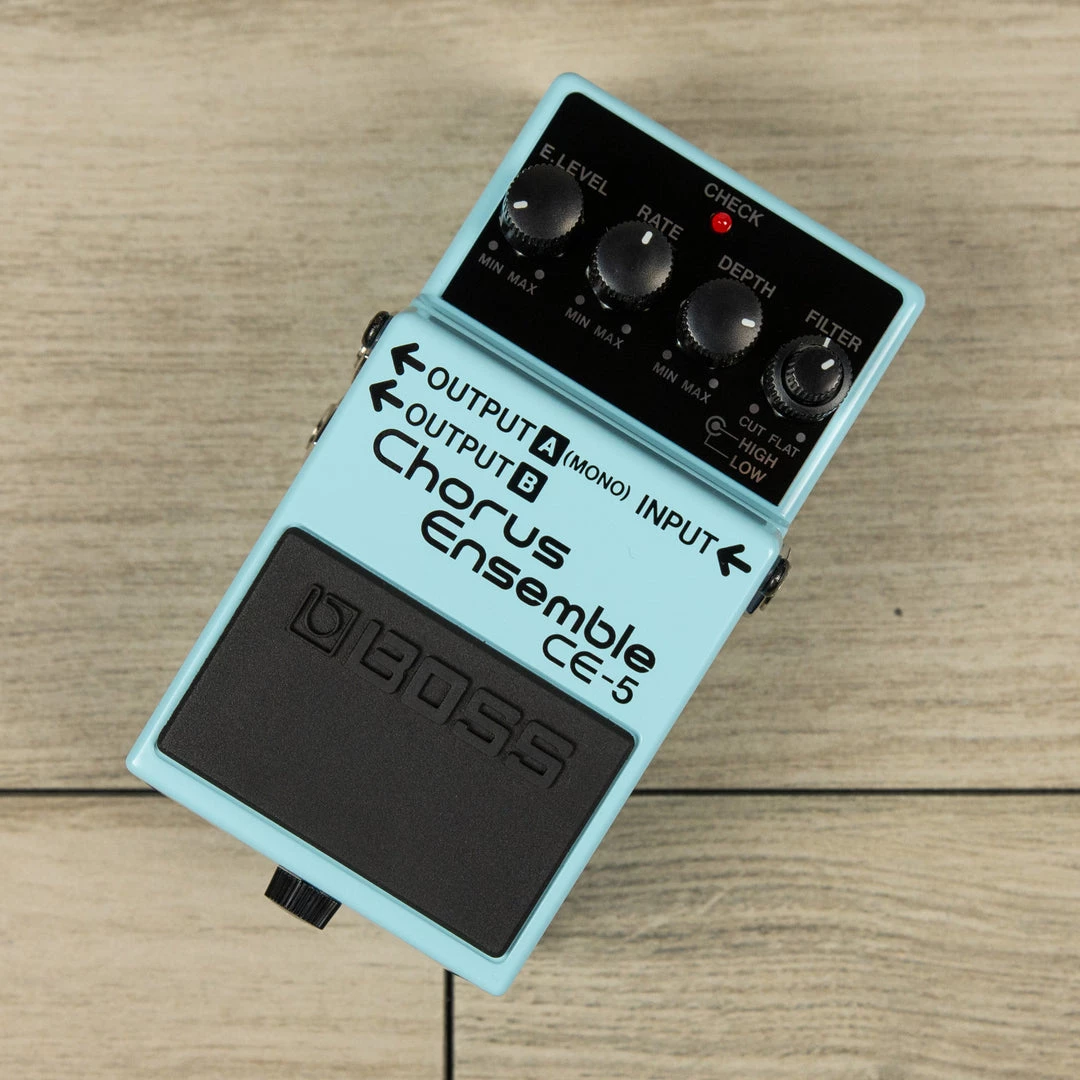

Boss CE-5 Chorus Ensemble Effects Pedals

THE ORIGINAL CHORUS
The CE-5 Chorus Ensemble is BOSS’ ultimate compact chorus pedal, covering a wide frequency range and featuring high- and low-cut filters. This lets users create any kind of chorus effect—from a mild, natural chorus to the clear and penetrating stereo chorus effect popular in contemporary music.

• Ultra-high quality compact chorus pedal for guitarists and keyboardists
• High- and Low-cut filters for shaping tonality of the chorus
• Offers Effect Level, Rate, Depth and Filter knobs for complete control
• Mono input and Stereo outputs for connection to dual amps or for studio use
• Produces a range of chorusing effects, from subtle to extreme
• BOSS five-year warranty

SPECIFICATIONS

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass
• Controls:
  • HIGH FILTER/LOW FILTER knob
  • DEPTH knob
  • RATE knob
  • E.LEVEL knob
  • Pedal switch
• Indicator: CHECK indicator (Used for indication of check battery)
• Connectors:
  • INPUT jack: 1/4-inch phone type
  • OUTPUT A/B jack: 1/4-inch phone type
  • DC IN jack
• Power Supply:
  • Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
  • AC adaptor (PSA series: sold separately)
  • Current Draw: 25 mA
• Expected battery life under continuous use:
  • Carbon: Approx. 11.5 hours
  • Alkaline: Approx. 25.5 hours
  • *These figures will vary depending on the actual conditions of use.
• Accessories:
  • Owner’s manual
  • Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
  • Carbon-zinc battery (9 V, 6F22)
• Options (sold separately): AC adaptor: PSA series

SIZE AND WEIGHT

• Width: 73 mm(2-7/8 inches)
• Depth: 129 mm(5-1/8 inches)
• Height: 59 mm(2-3/8 inches)
• Weight (including battery):410 g(15 oz)
